Optical communication has revolutionized the way data is transmitted over long distances, offering high bandwidth and low latency. A critical component in this technology is the Fused Biconical Taper (FBT) coupler splitter, which plays a vital role in splitting and combining optical signals. Understanding the function and significance of FBT Coupler Splitter devices is essential for optimizing optical networks and ensuring efficient data transmission.
Optical communication relies on the transmission of data using light signals through optical fibers. This method offers several advantages over traditional copper cables, including higher bandwidth, longer transmission distances without signal degradation, and immunity to electromagnetic interference. The core principle involves encoding data onto light beams, which are then transmitted through fibers made of glass or plastic.
An optical network comprises various components such as transmitters, optical fibers, amplifiers, and receivers. Among these, passive optical components like splitters and couplers are crucial for network functionality. They manage the distribution and combination of optical signals across different network paths, enabling complex networking architectures like ring, star, and bus topologies.

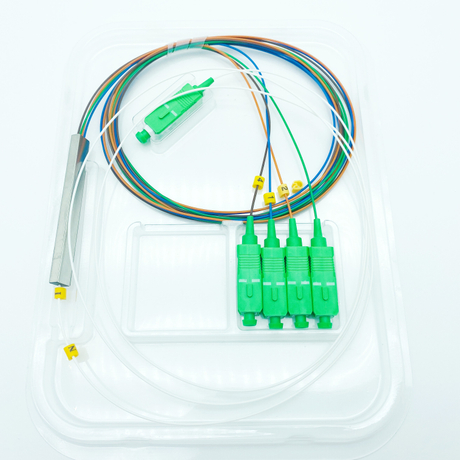

FBT coupler splitters are passive devices used to split or combine light in optical fiber networks. The technology involves fusing two or more fibers together and tapering them to form a coupling region where light can transfer between fibers. This process allows a single optical signal to be divided into multiple outputs or multiple signals to be combined into a single output.
The manufacturing of FBT coupler splitters involves precisely aligning and fusing optical fibers under controlled heating conditions. The fibers are stretched to form a taper, and the coupling ratio is determined by the length and thickness of this tapered region. This process requires meticulous control to achieve the desired optical performance and maintain signal integrity.
FBT coupler splitters can be categorized based on the number of input and output ports. Common configurations include 1x2, 2x2, and higher-order splitters. They are also designed for specific wavelength ranges, making them suitable for various applications in single-mode and multi-mode fiber networks.
In optical networks, FBT coupler splitters serve several critical functions. They facilitate the distribution of optical signals to multiple endpoints, which is essential in Passive Optical Networks (PON) for delivering broadband services to numerous subscribers. Additionally, they are used in optical sensing applications and signal monitoring within the network infrastructure.
FBT coupler splitters enable efficient signal splitting without the need for active components, thus reducing power consumption and increasing network reliability. By allowing signals to be split or combined, they support the implementation of complex network designs and facilitate redundancy and load balancing.
These devices are instrumental in managing different wavelengths in Wavelength Division Multiplexing (WDM) systems. They aid in multiplexing and demultiplexing signals, which increases the capacity of optical fibers by allowing multiple wavelengths to be transmitted simultaneously. This capability is essential for handling the growing demand for bandwidth in modern communication networks.
FBT coupler splitters offer several benefits that make them a preferred choice in various optical applications. Their manufacturing process is well-established and cost-effective, making them accessible for widespread deployment. They also provide flexibility in design, allowing customization for specific network requirements.
Due to the simplicity of the manufacturing process, FBT coupler splitters are generally less expensive than other types of splitters, such as Planar Lightwave Circuit (PLC) splitters. This cost advantage is significant when scaling up network infrastructures, especially in broadband access networks where a large number of splitters are required.
FBT technology allows for customization of splitting ratios and supports a range of wavelengths. This flexibility enables network designers to tailor the components to specific needs, optimizing performance for particular applications such as in specialized sensing equipment or bespoke communication systems.
Despite their advantages, FBT coupler splitters have limitations that must be considered. One of the primary challenges is their performance over a wide wavelength range. Unlike PLC splitters, FBT splitters may exhibit higher insertion loss and less uniform splitting ratios across different wavelengths.
FBT coupler splitters can be sensitive to temperature variations, which may affect their performance in certain environments. This sensitivity necessitates careful consideration of operating conditions and may require additional environmental controls to maintain optimal functionality.
The wavelength-dependent nature of FBT splitters means that they are best suited for applications within specific wavelength ranges. For networks requiring uniform performance across a broad spectrum, alternative technologies like PLC splitters may be more appropriate.
FBT coupler splitters are widely used in various optical communication systems. In Fiber to the Home (FTTH) networks, they enable the distribution of signals to multiple residences from a single optical line terminal. They are also utilized in Local Area Networks (LANs), metropolitan networks, and long-haul communication systems.
In PON architectures, FBT coupler splitters distribute optical signals to multiple endpoints without requiring electrical power. This passive distribution is cost-effective and reduces maintenance complexity, making it ideal for wide-scale deployment in access networks.
FBT splitters are employed in optical sensing applications, such as interferometry and fiber optic gyroscopes. Their ability to split and combine light precisely is essential for measuring physical parameters like temperature, strain, and rotation with high accuracy.
While both FBT and PLC splitters serve the purpose of splitting optical signals, they differ in manufacturing processes, performance characteristics, and cost. PLC splitters use photolithographic techniques to create waveguide circuits on a silica substrate, offering uniform performance across a wide wavelength range.
PLC splitters generally provide better performance in terms of lower insertion loss and broader wavelength operation. However, they are more expensive to produce, especially in configurations with fewer splits. FBT splitters, on the other hand, are more cost-effective for lower split ratios and specific wavelength applications.
The choice between FBT and PLC splitters depends on network requirements. For applications needing uniformity and performance across multiple wavelengths and higher split ratios, PLC splitters are preferable. In contrast, FBT splitters are suitable for cost-sensitive applications with lower split ratios and specific wavelength needs.
Ongoing research and development are enhancing the capabilities of FBT coupler splitters. Improvements in manufacturing techniques are leading to better control over coupling ratios and reduced insertion losses. Additionally, hybrid devices combining FBT technology with other optical components are expanding their application scope.
Emerging applications such as optical coherence tomography and fiber optic sensors benefit from advanced FBT splitters. The precision and reliability of these devices are critical in medical imaging and industrial sensing, where accurate signal manipulation is paramount.
As networks evolve towards higher data rates and more complex architectures, FBT coupler splitters remain relevant due to their adaptability and cost-effectiveness. They continue to play a significant role in legacy systems and are integrated into modern networks where their specific advantages are required.
FBT coupler splitters are integral components of optical communication networks, providing essential functions in signal splitting and combining. Their cost-effectiveness and flexibility make them valuable in a range of applications, from broadband access networks to specialized sensing equipment. Understanding their role and capabilities is crucial for network engineers and designers aiming to optimize performance and cost in optical systems.
Incorporating FBT Coupler Splitter devices appropriately within network infrastructures can lead to significant improvements in efficiency and reliability. As technology advances, these components will continue to evolve, maintaining their relevance in the ever-expanding field of optical communications.
